ANKLES

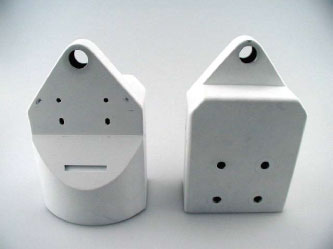

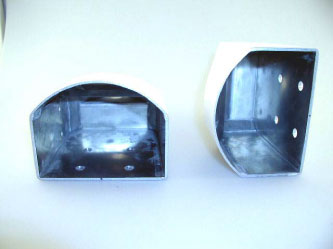

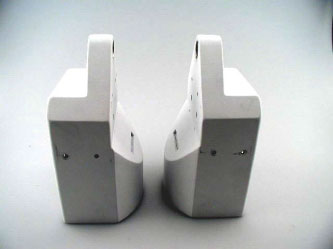

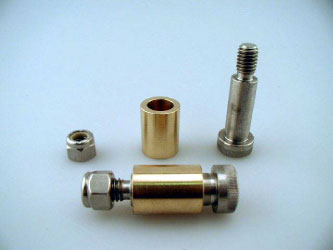

Ankles Outer (2) Aluminum Paint R2 White attach to foot using bronze bushing, SS bolt, SS nut each



Ankle Brackets (2) Aluminum

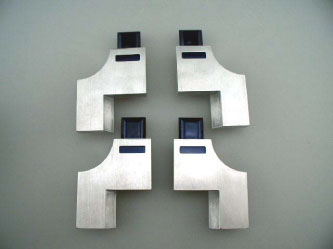

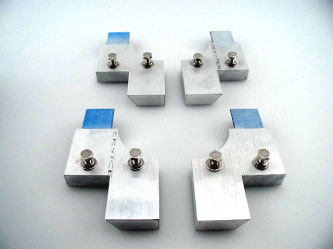

Ankle Side Details (2) Left (2) Right Aluminum (painted blue in both areas) attach with 2 Hex SS screws/washers/lock washers

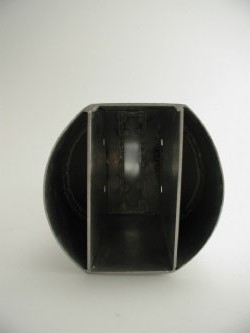

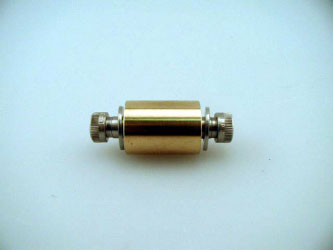

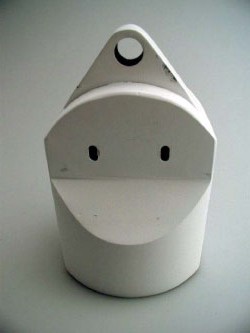

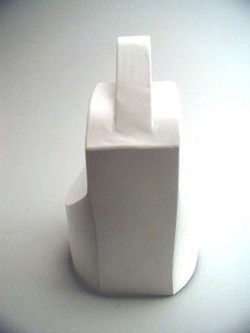

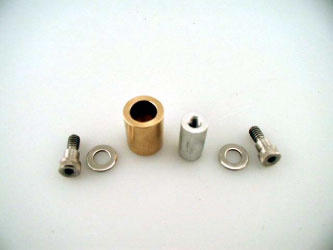

Ankle Center Aluminum Paint R2 White attach to foot using bronze bushing, aluminum spacer, 2 washers, 2 screws

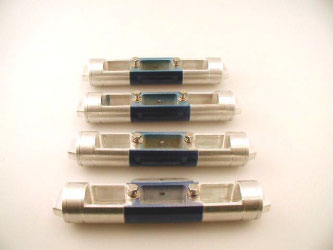

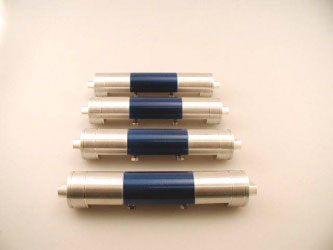

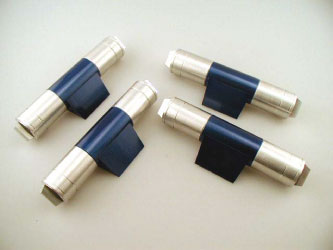

Ankle Cylinders (4) Aluminum - Diet Paint R2 Blue attach with 2 Hex SS screws/washers/lock washers each

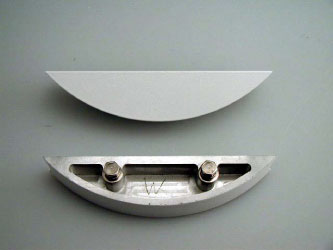

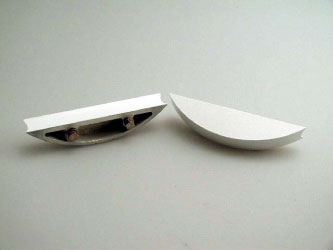

Ankle Cylinder Holders (2) Aluminum - Diet Paint R2 White attach with 2 Hex SS screws/washers/lock washers each



Ankle Wedges (4) Aluminum - Diet Paint R2 Blue attach with 2 Hex SS screws/washers/lock washers each

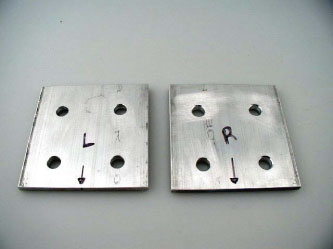

Ankle/Leg Spacers 4" X 4", 1/4" Thick 6061-T6 Aluminum Alloy (4 Holes)
(4 per ankle/leg) Hex Bolt SS 3/8" X 3"
(4 per ankle/leg) Lock Nut
(4 per ankle/leg) Lock Washer
(8 per ankle/leg) Washer
